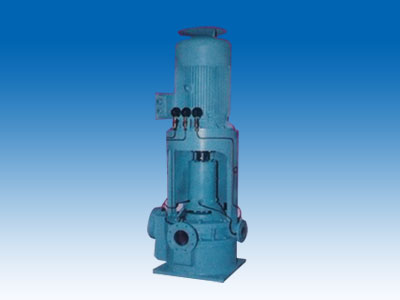

CLH/2 Series Marine Vertical Two-Stage Centrifugal Pumps

CLH/2 Series Marine Vertical Two-Stage Centrifugal Pumps

Introduction:

CLH /2 series marine vertical two-stage centrifugal pumps is a multi-purpose marine pump.it can be used as marine ballast-bilge pump, cooling pump and fire pump.so it is suitable to be used in verious ships.

The typical example and its explanation for the pump type

For example : CLH150-125-17/2A
CLH- marine vertical centrifugal pump.
150-inlet diameter of the pump,mm
125- outlet diameter of the first stage
17- specific speed divided by ten
2-two stage
A-change of impeller diameter(B is second)

Main technical performance parameters

Type

voltage 440V Frequency 60Hz

Main technical Performance parameters

Capacity m3/h Head m Speed r/min NPSHr m Shaft power kW Matched power kW Pump weight  Kg
CLH125-100-5/2 51/51 30/60 1450 3.0 22
CLH125-100-7/2 80/40 25/55 3.0 18.5
CLH125-100-9/2 116/58 24/61 3.6 22
CLH125-100-9/2A 141/62 23.5/59 3.4 30
CLH125-100-9/2B 112/54 15/52 3.5 18.5
CLH125-100-10/2 110/50 20/35 3.5 15
CLH125-125-6/2 95/95 36.5/82 4.3 45
CLH150-125-6/2A 95/70 32/80 4.3 37
CLH150-125-17/2 149/95 27.5/77 4.5 45
CLH150-125-17/2A 141/95 16.5/60.5 4.5 37
CLH150-125-12/2 199/99 23.5/65 4.6 45
CLH200-150-7/2 124/120 33.5/77 4.2 55
CLH200-150-7/2A 215/120 23.5/65 4.4 45
CLH200-150-7/2B 199/108 17/60.5 4.4 37
CLH200-150-13/2 257/124 24/68.5 3.7 55
CLH250-200-9/2 199/182 33/79 4.3 75
CLH250-200-9/2A 348/174 22/71.5 4.1 75
CLH250-200-9/2B 265/166 14.5/62 4.6 55
CLH250-200-19/2 389/182 22/70 4.8 75
